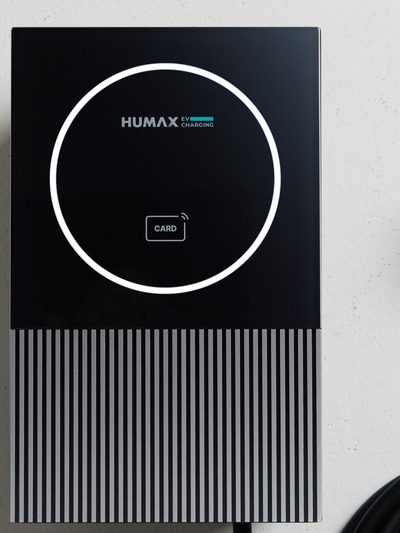

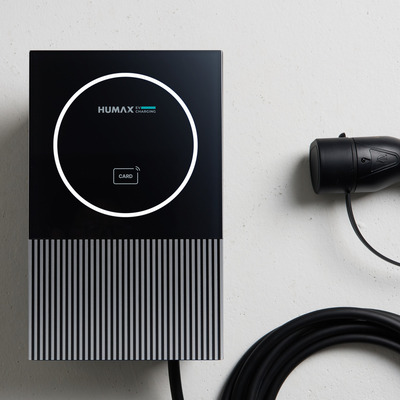

Humax MX7 Smart EV Charger | Tethered
V2G Future-Ready · 7.4kW · Tethered · Type 2 · Single Phase · Wall Mounted · Wi-Fi & Bluetooth · App Controlled · Compatible with All EVs & PHEVs · Black
In stock — ready to dispatch.
- 5-year warranty when you register this product online.
- 30-day returns — full refund within 30 days of receipt.
- UK email support via sales@mabeltrading.com — replies within 1 business day.
What's in the box
EV charger, wall bracket, CT clamp & connector, ferrule terminals, screws, extension connector, 2 × RFID cards, and a quick guide.
Built for the modern home
Smart, future-proof, made for the UK home.
Vehicle identification
Built-in PLC technology identifies your vehicle automatically. Pre-identified vehicles can be authorised; unknown vehicles you can allow or block.
Intelligent charging
Adjusts charging to your vehicle's battery size and prioritises off-peak hours to save money.
Auto Solar — Seamless Solar Charging
Uses surplus solar PV to charge your EV. Home energy needs are prioritised first, then surplus is directed to charging.
Style meets smart charging
A swappable front fascia lets you customise the panel to match the style of your home. Built from weather-resistant, high-impact PC/ASA.
At a glance
Eight reasons to choose the MX7.
IP65 weather resistant
Sealed against dust ingress and rated against pressurised water jets — built for British weather.
Durable PC/ASA body
High-impact, weather-resistant housing engineered to last.
Digital security lock
Lock the charger via the app to prevent unauthorised use.
5-year warranty
Backed by Humax's 5-year manufacturer warranty.
Adjustable LED brightness
Tune the LED ring to suit your driveway, day or night.
Built-in temperature sensor
Overheat protection built into the unit.
Compatible with all EVs & PHEVs
Type 2 connector — the UK standard.
Tamper protect switch
Detects unauthorised opening of the unit.
Installation
Standard installation (recommended).
We take care of the complete installation, commissioning, and handover of your charger — covering the Greater London Area. £450, included as an option above.
Important note on V2G & V2H
The MX7 hardware is V2G-ready and fully compliant with ISO 15118 communication standards. However, AC-based V2G/V2H functions are not yet commercially supported. Real-world V2G depends on vehicle manufacturer readiness, energy provider participation, and grid code certification (such as G99/G100 approval in the UK). Commercial launch will be announced once full certification and partner integration are achieved.
Common questions
Tethered MX7 — FAQs.
Can I use V2G/V2H with MX7?
Currently, these functions are not commercially supported. AC-based V2G/V2H requires both the vehicle and the charger to be approved by the DNO. MX7 hardware supports ISO 15118; software and certification are still in progress.
What is Intelligent Charging?
- Vehicle identification: Automatically adjusts charging to your battery size
- Tariff management: Prioritises off-peak hours
Can MX7 integrate with solar PV?
Yes. Auto Solar mode prioritises home energy first, then directs surplus solar power to EV charging.
What's the difference between 5m and 7.5m cable?
Cable length only. The 7.5m version gives extra reach for longer driveways or where the charger sits further from your parking spot. Both deliver 7.4kW.
What does a standard installation include?
Up to 10m cable run, mounting, RCD/MCB/surge protection, certification, DNO + Building Control notification, app registration and demo. See the full process for details.
What safety features does MX7 have?
- Temperature sensor (overheat protection)
- Tamper Protect Switch
- Overcurrent, earth leakage, and surge protection
Specifications
Technical detail.
| Power supply | Single-phase, 230V AC, 50Hz |
| Rated current | 32A |
| Power rating | 7.4kW |
| Charge connector | 5m / 7.5m tethered cable, Type 2 |
| Housing material | PC/ASA |
| LED indicator | White / Blue / Green / Yellow / Red |
| RFID / NFC | ISO/IEC 14443 Type A (Mifare Classic, 13.56 MHz) |
| Start mode | Plug & Play / RFID Card / App |
| Communication | Wi-Fi, Bluetooth LE, Ethernet (4G optional) |
| Protocol | OCPP 1.6J |
| Ingress protection | IP65 |
| Impact protection | IK10 |
| Electrical protection | Over-current, residual current, surge, over/under voltage, over/under frequency, over-temperature, PEN fault, tamper protection |
| Operating temperature | −30°C to +50°C |
| Humidity | 5% – 95% |
| Altitude | < 2,000 m |
| Product size | 335 × 210 × 133 mm |
| Weight (net) | 5m: 4.72 kg / 7.5m: 5.43 kg |
| Warranty | Up to 5 years* |
* The above information is generally descriptive only and is not intended as guarantee or warranty.
You may also like.
Prefer to use your own cable? The Socket variant gives you a Type 2 socket only — bring your own cable.
