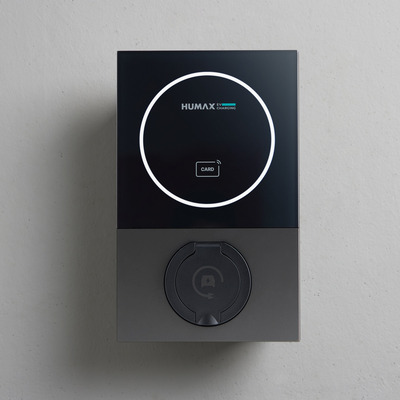

Humax MX7 Smart EV Charger | Socket
V2G Future-Ready · 7.4kW · Socket · Type 2 · Single Phase · Wall Mounted · Wi-Fi & Bluetooth · App Controlled · Compatible with All EVs & PHEVs · Black
In stock — ready to dispatch.
- 5-year warranty when you register this product online.
- 30-day returns — full refund within 30 days of receipt.
- UK email support via sales@mabeltrading.com — replies within 1 business day.
What's in the box
EV charger, wall bracket, CT clamp & connector, ferrule terminals, screws, extension connector, 2 × RFID cards, and a quick guide.
Built for the modern home
Smart, future-proof, made for the UK home.
Vehicle identification
Built-in PLC technology identifies your vehicle automatically. Pre-identified vehicles can be authorised; unknown vehicles you can allow or block.
Intelligent charging
Adjusts charging to your vehicle's battery size and prioritises off-peak hours to save money.
Auto Solar — Seamless Solar Charging
Uses surplus solar PV to charge your EV. Home energy needs are prioritised first.
Style meets smart charging
A swappable front fascia lets you customise the panel. Built from weather-resistant, high-impact PC/ASA.
At a glance
Eight reasons to choose the MX7.
IP54 weather resistant
Sealed against dust ingress and rated against splash water — built for British weather.
Durable PC/ASA body
High-impact, weather-resistant housing engineered to last.
Digital security lock
Lock the charger via the app to prevent unauthorised use.
5-year warranty
Backed by Humax's 5-year manufacturer warranty.
Adjustable LED brightness
Tune the LED ring to suit your driveway, day or night.
Built-in temperature sensor
Overheat protection built into the unit.
Compatible with all EVs & PHEVs
Type 2 socket — bring your own cable.
Tamper protect switch
Detects unauthorised opening of the unit.
Installation
Standard installation (recommended).
We take care of the complete installation, commissioning, and handover of your charger — covering the Greater London Area. £450, included as an option above.
Important note on V2G & V2H
The MX7 hardware is V2G-ready and fully compliant with ISO 15118 communication standards. However, AC-based V2G/V2H functions are not yet commercially supported. Real-world V2G depends on vehicle manufacturer readiness, energy provider participation, and grid code certification (such as G99/G100 approval in the UK). Commercial launch will be announced once full certification and partner integration are achieved.
Common questions
Socket MX7 — FAQs.
Can I use V2G/V2H with MX7?
Currently, these functions are not commercially supported. AC-based V2G/V2H requires both the vehicle and the charger to be approved by the DNO. MX7 hardware supports ISO 15118; software and certification are still in progress.
What is Intelligent Charging?
- Vehicle identification: Automatically adjusts charging to your battery size
- Tariff management: Prioritises off-peak hours
Can MX7 integrate with solar PV?
Yes. Auto Solar mode prioritises home energy first, then directs surplus solar power to EV charging.
What cable do I need with the Socket version?
A Type 2 (Mennekes) cable. This is the UK and EU standard for AC charging — most EVs ship with one. The Socket gives you a Type 2 socket on the unit; you plug your own cable in.
What does a standard installation include?
Up to 10m cable run, mounting, RCD/MCB/surge protection, certification, DNO + Building Control notification, app registration and demo. See the full process for details.
What safety features does MX7 have?
- Temperature sensor (overheat protection)
- Tamper Protect Switch
- Overcurrent, earth leakage, and surge protection
Specifications
Technical detail.
| Power supply | Single-phase, 230V AC, 50Hz |
| Rated current | 32A |
| Power rating | 7.4kW |
| Charge connector | Type 2 socket |
| Housing material | PC/ASA |
| LED indicator | White / Blue / Green / Yellow / Red |
| RFID / NFC | ISO/IEC 14443 Type A (Mifare Classic, 13.56 MHz) |
| Start mode | Plug & Play / RFID Card / App |
| Communication | Wi-Fi, Bluetooth LE, Ethernet (4G optional) |
| Protocol | OCPP 1.6J |
| Ingress protection | IP54 |
| Impact protection | IK10 |
| Electrical protection | Over-current, residual current, surge, over/under voltage, over/under frequency, over-temperature, PEN fault, tamper protection |
| Operating temperature | −30°C to +50°C |
| Humidity | 5% – 95% |
| Altitude | < 2,000 m |
| Product size | 335 × 210 × 144 mm |
| Weight (net) | 3.25 kg |
| Warranty | Up to 5 years* |
* The above information is generally descriptive only and is not intended as guarantee or warranty.
